Gen 6 Small Lidar Connector Compatibility Issue

1

Hello everyone,

We were working last week on the Gen 6 Small robot. We tried to plug the LIDAR’s connector into the PCB connector so @mbositc can try his software on it. However, we run into a connector issue. When trying to plug the LIDAR’s male connector into the female header on the PCB, they wouldn’t fit — the male connector seems too large for the socket [Images provided bellow]. I heard you are the person to ask the solution for this: @jithinlaldev, but help from anyone else is welcome as well.

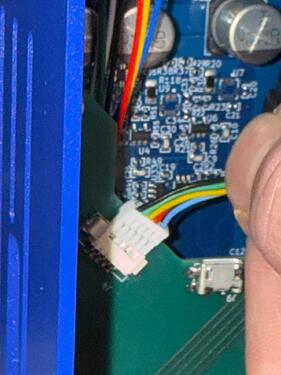

Here are images showcasing the problem:

uncompatible
uncompatible1200×1600 152 KB

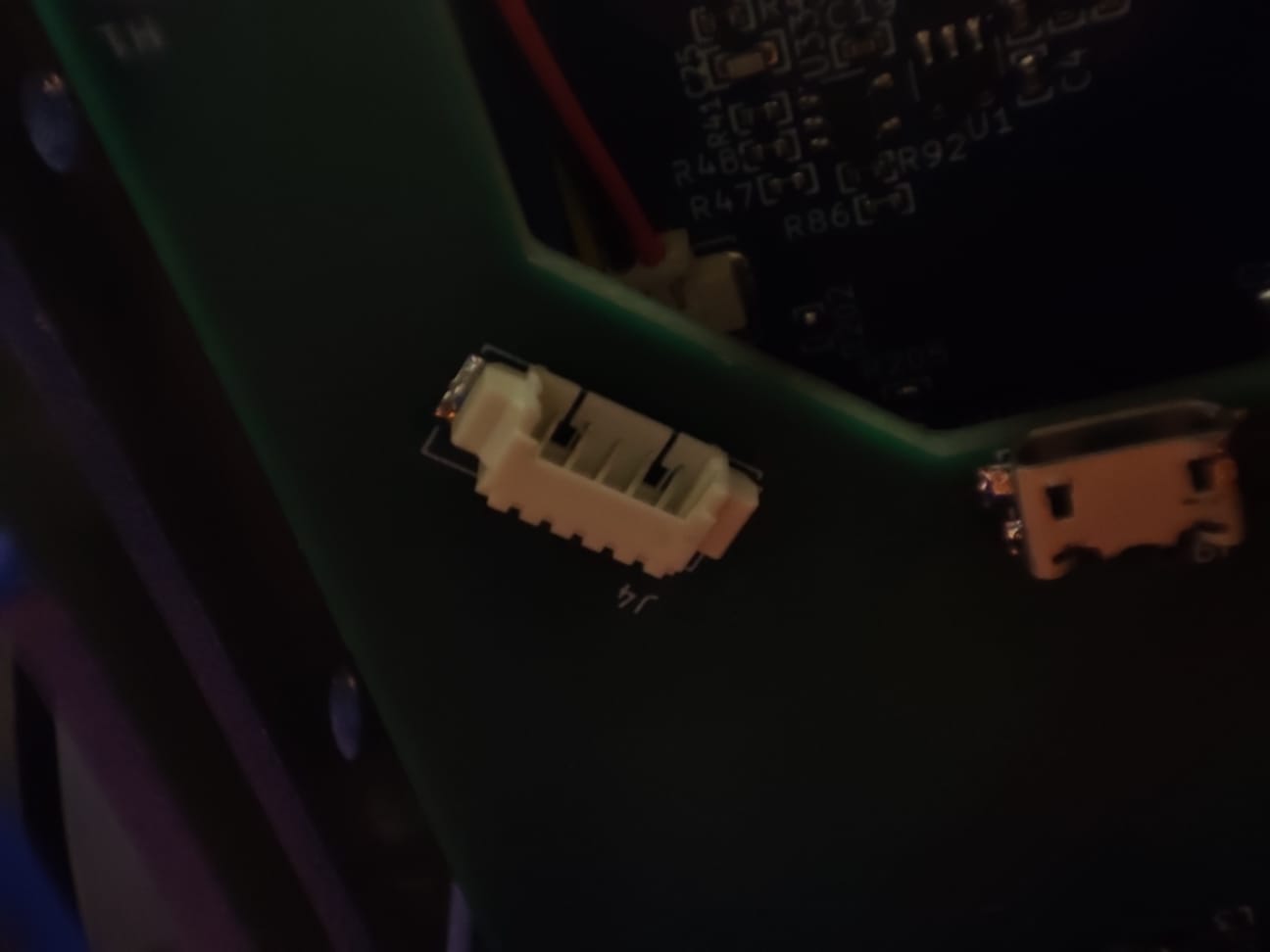

The header:

female_connector
female_connector1296×972 29 KB

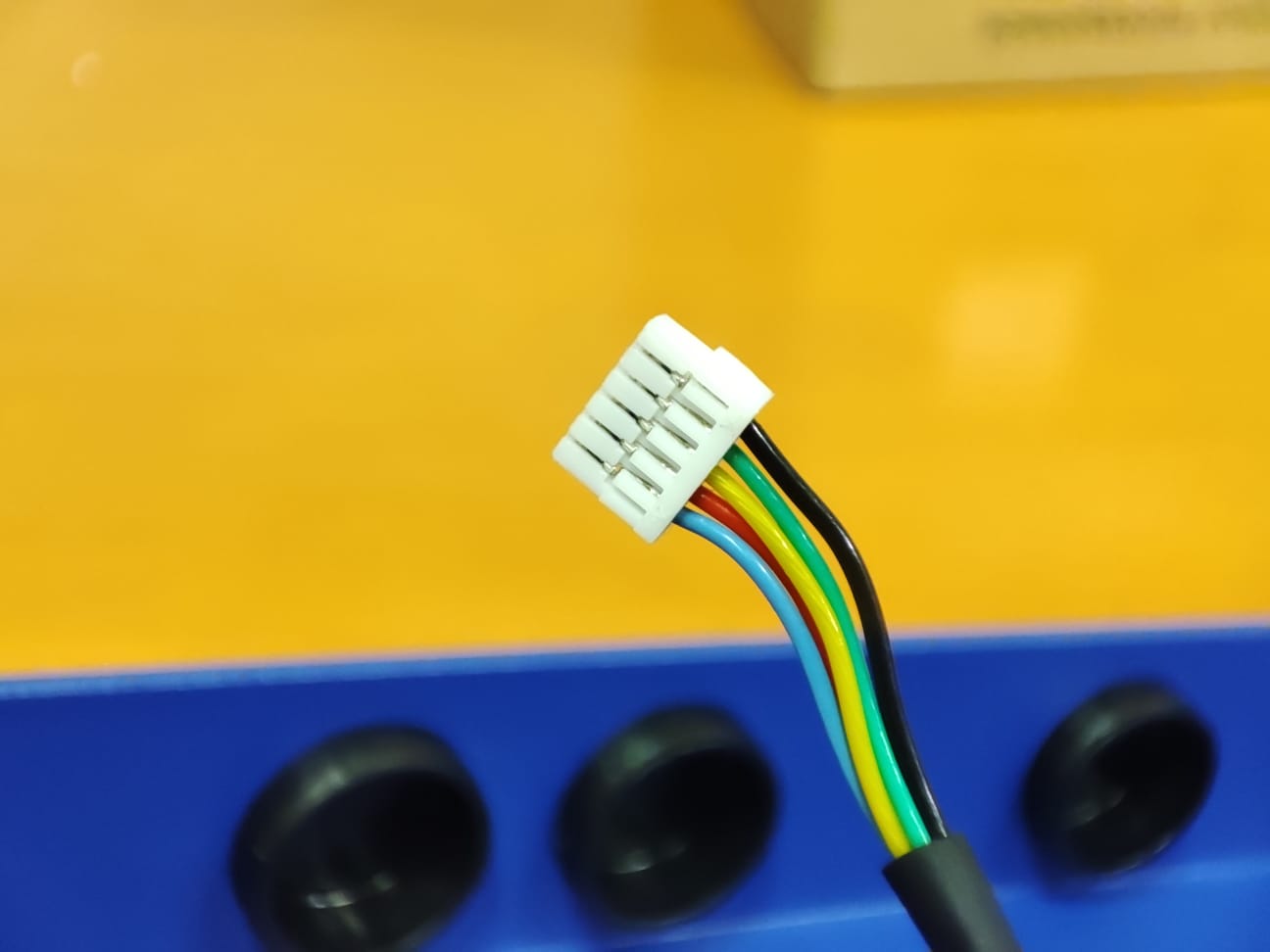

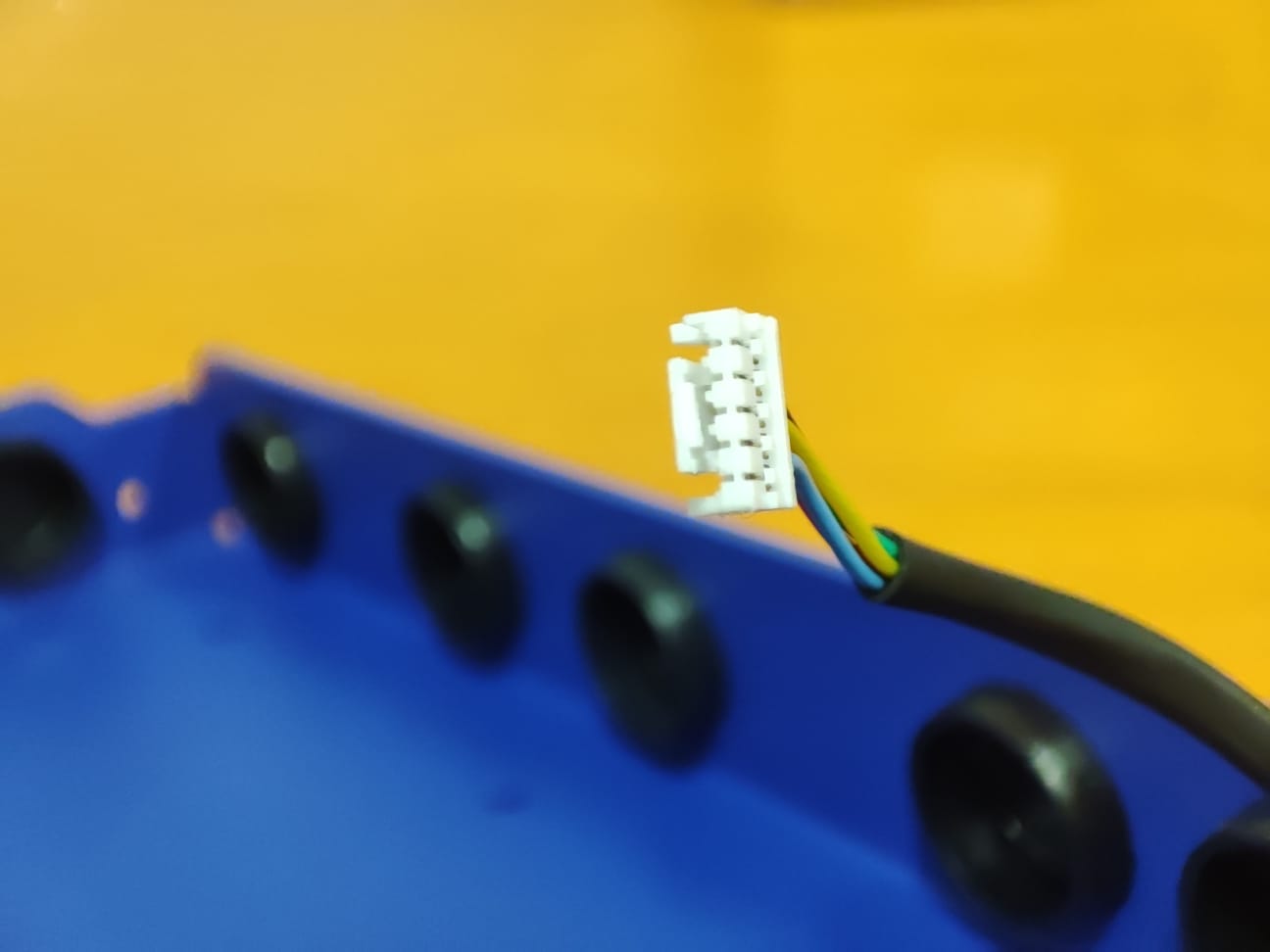

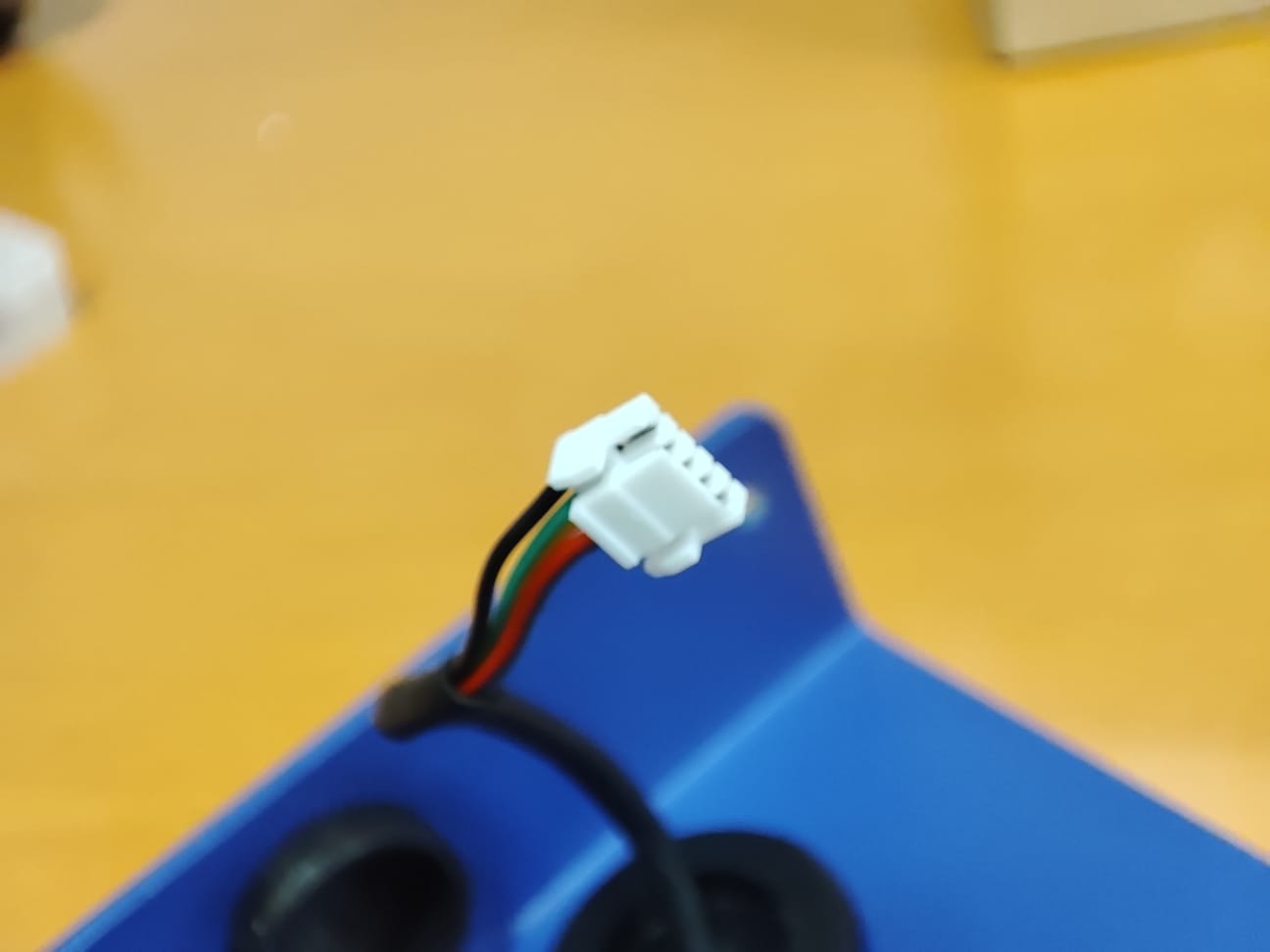

Male connector from different sides:

male_connector_front
male_connector_front1296×972 43.6 KB

male_connector_side
male_connector_side1296×972 32.1 KB

male_connector_top.jpeg1296×972 35.1 KB

Thank you in advance for any help.

Best,
Pavel.
